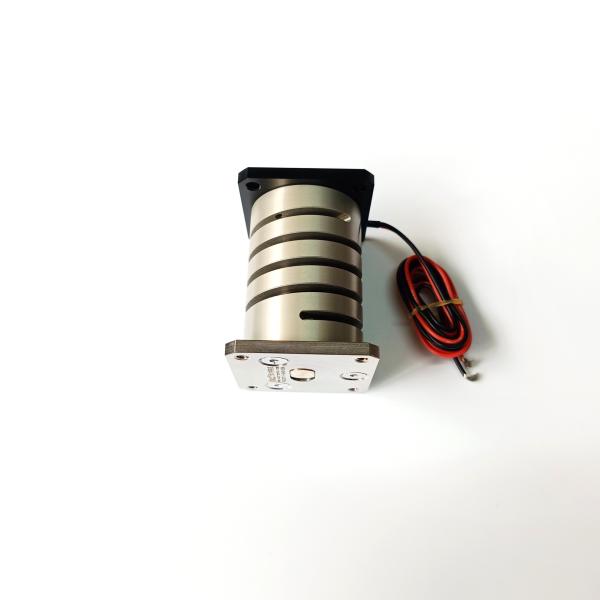

High Precision Flexible Vibratory Disk Voice Coil Motor For Feeding System

Name: High Precision Flexible Vibratory Disk Voice Coil Motor For Feeding System
Brand: SUPT MOTION
Price: 149 USD

High Precision Flexible Vibratory Disk Voice Coil Motor For Feeding System Manufactures

Brand Name : SUPT MOTION

Model Number : VCAZ0020-0040-00A

Certification : ISO9001

Place of Origin : china,Suzhou

MOQ : 1PCS

Price : $149

Payment Terms : T/T

Supply Ability : To be negotiated

Delivery Time : General 5-7 days delivery, fast 3-5 days, bulk to be negotiated

Packaging Details : Customized packaging etc.

Life : Long Life

Nominal Voltage : 25.6

Model : VCAZ0020-0040-00A

Peak Force : 20.5N

Motor Type : Vibration Motors

Current : 0.03A-0.5A

Product Type : Flexible vibration voice coil motor

Actuator weight (g) : 69

Use : BOAT, Car, Electric Bicycle, 3D Printing,Microscope,Robot,Medical Ventilators,Optical project

Warranty : 3months-1year

Continuous force(N) : 8.9

Contact Now

Product Description:

The flexible vibrating disk voice coil motor is based on the electromagnetic principle. It consists of a permanent magnet, a coil and a flexible platter. When an electric current passes through the coil, it generates a Lorentz force in the magnetic field, which drives the flexible platter to produce motion.

The unique feature of this motor is the design of the flexible disk. Unlike traditional rigid structures, the flexible disk is able to better adapt to complex working conditions during movement, reducing vibration and noise, and improving the stability and reliability of the motor.

The flexible loading mechanism of the voice coil motor solves the loading problem that cannot be solved by the traditional vibration plate.
Flexible vibrating voice coil motor is processed with high strength and good stability materials.
Flexible vibration voice coil motor, short response time, high vibration frequency, consistency and stability.
Voice coil motor flexible vibration plate using special drive control technology, can realize the parts back and forth movement, flip, dispersion and polymerization.
The voice coil motor flexible loading mechanism integrates adjustable backlighting light source, which can complete the vibration feeding, automatic control of the vision system, and automatic control of the machine's individual pick-up system.

Features:

Winding constant	VALUE
DC resistance	9.5
Voltage @ Fp	14.8
Current @ Fp	1.6
Inductance	0.37
Peak force	4.2
Con force	2.2
Actuator constant	0.87
Power @ Fp	24
Total stroke	1.5
Max winding temp	150
Actuator weight	69

Product Parameters:

Coil parameters	Tolerance	Symbol	Value	Unit
DCR	±10%	R	9.5	Ω
Peak Voltage	standard value	Vp	14.8	V
Maximum current	standard value	Ip	1.6	A
Force constant	±7.5%	KF	2.7	N/A
Back EMF constant	standard value	KD	2.7	V/M/Sec
Inductance	±30%	L	0.37	mH
Actuator paramters		Symbol	Value	Unit
Peak force		Fp	4.2	N
Continuous stall force		Fc	2.2	N
Actuator coonstant		Ka	0.87	N//W
Electrical time constant		Te	0.04	milli-sec
Pmax		Pp	24	W
Stroke		S	1.5	mm
Clearance of each side of coil		CL	0.8	mm
Thermal resistance		Oth	20	℃/W
Maximum coi temp allowed		Tmax	150	℃
Weight of coil		WTc	13	g
Weight of magnet steel		WTE	56	g
Weight of Actuator		WTa	69	g

High Precision Flexible Vibratory Disk Voice Coil Motor For Feeding System

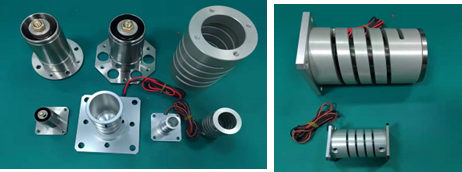

Application:

The main application of a voice coil motor:

1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.

4.Vibration System:Shaking table, vibration platform.

5.Medical field:Micro-injection system, respiratory equipment, testing equipment.

6.Aviation Technology:Flight control system, pilot feedback system.

7.Commercial use field:Computer cooling pump miniature camera auto focus system.

8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.
